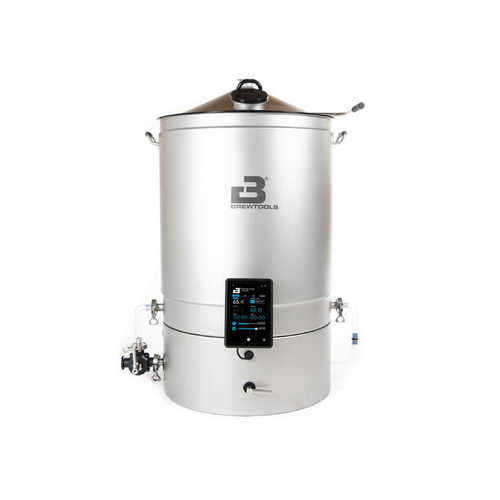

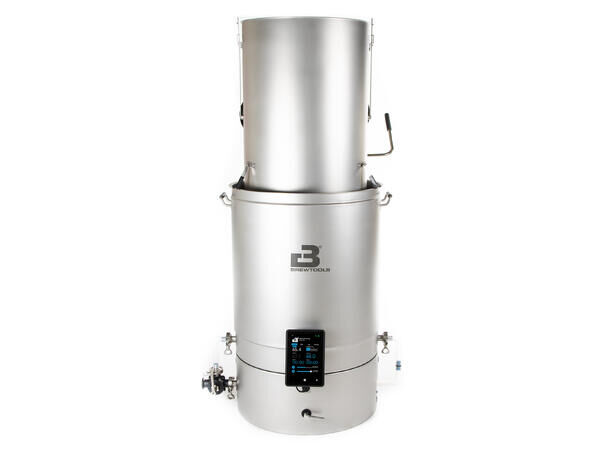

B180 Brewing System

The B180 is a powerful all in one brewing system for serious homebrewers or small breweries. It offers simplicity out of the box, whilst keeping the level expansion possibilities.

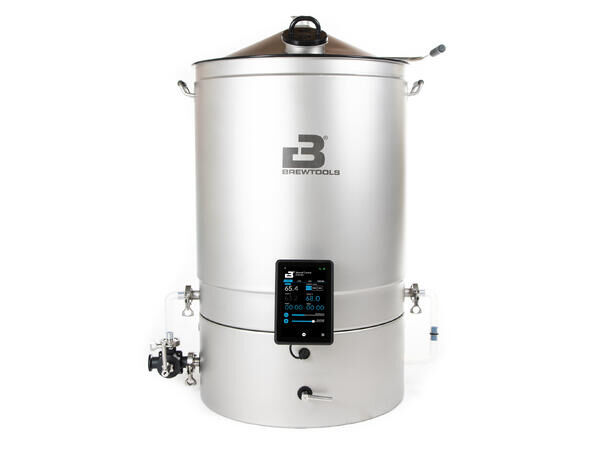

Indirect heating and included whirlpool setup for maximum yield and fast cooling  through the integrated cooling jacket makes cleaning a breeze. The 8" touch display can easily be relocated on the system or externally based on your needs (longer cables are available).

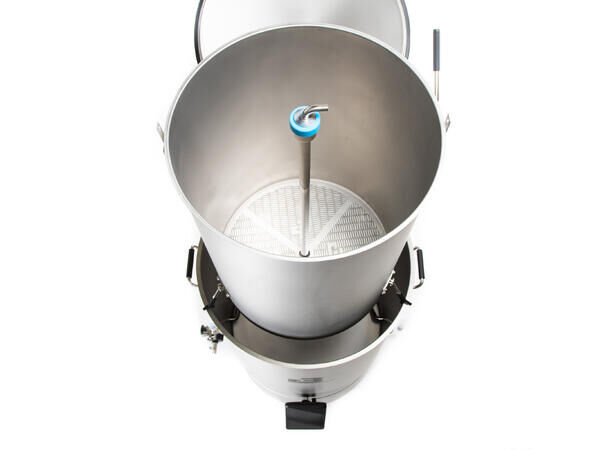

Included whirlpool setup for maximum yield and fast cooling.

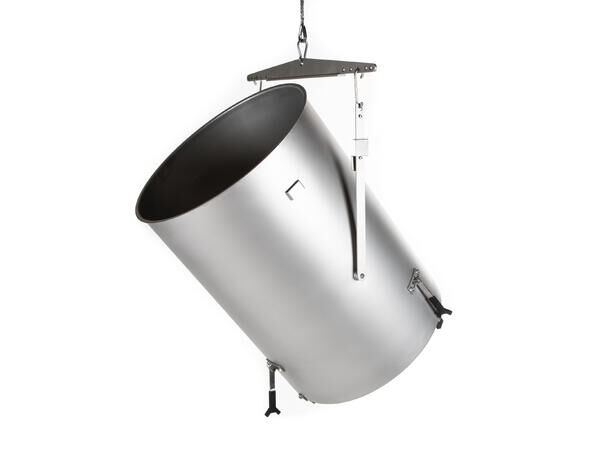

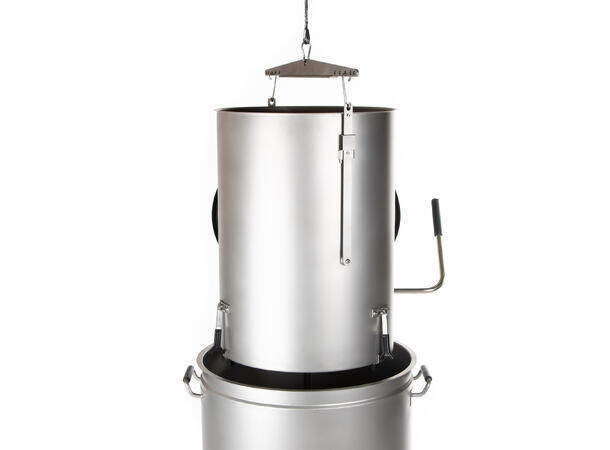

The included malt pipe has a hing system to allow tilting the malt pipe to empty spent grains easily.

The flow of wort through the FCS Brew Pump is controlled via the patented CleanCore 3-Way valve operated from the front.

The combined temperature and level switch sensor keeps you safe by automatically switching off the pump and heating if the water level is low.

With TC side ports, you can easiliy expand the inputs and outputs of the tank with sparge water, external added cooling with bypass etc.

The B180 can be expanded with an external side-by-side mash tun that greatly increases the malt capacity and removes the need for a crane to handle the malt pipe.

If you need a powerful and flexible workhorse for high volume homebrewing or a pilot brewery, the B100 or B180 is the perfect match.

• Indirect heating (10 degree conical bottom)
• Integrated cooling jacket
• Included whirlpool setup
• Included hinged steam hat
• Tiltable malt pipe
• Powered by FCS Brewing with an 8" Touch Screen
• Patented CleanCore sanitary 3-way valves
• 2 side TC ports for expansion
• Optional external mash tun and counterflow chiller
• Included temperature sensor for malt pipe

Remember to get power cables for your area (purchased separately)
B180 2x16A 230V (6.6kW) - 2x LP20 (Schuko, UK BS1363 etc.)
B180 2x25A 230V (10kW) - 2x LP24 (Crimped ends. Connected by electrician)
B180 3-phase 400V 16A - 1xLP24, Red CEE 16A 5-pin

B180 3-phase 230V 32A - 1xLP24, Blue CEE 32A 4-pin (Norway only)

Drawings / Schematic for setup

Available controller ports:

- 2 CAN bus ports (+24V)

- 1 High Power CAN bus port for external mash pump
- 1 external high level switch (for external mash tun)

- 1 mash temp sensor input

- 1 return temp sensor input (optional)

In the box:

- B180 brewing system with malt pipe and steam hat

- Malt pipe with laser cut filter

- 1 CleanCore 3-way valve

- Silicone tubing for draining and recirculation

- Parts and accessories for assembly

- Mash sensor (probe with 2m cable)

Specifications:

Batch size: 30-180 liters

Total volume capacity: 197 liters

Grain capacity: 45 kg

Heating power: 6600-10000W (230V/400V) Depending on model

Watt density: 2.9-4.4W/cm2

Control system: FCS Brewing with 8" IPS touch screen

Connectivity: Wi-Fi 2.4 GHz 802.11ax/b/g/n

Pump: Brewtools FCS Brew Pump, 30 l/min, 4.5m head

Materials: 304 Stainless steel, food grade silicone, EPDM, POK (Polyketone)

Valves, fittings, and connections: TC 1.5" (TC34mm for cooling jacket)
System height with steam hat: 1100mm

Tank dimensions : Ø600mm, height 700mm (198 liters)

Malt pipe dimensions: Ø500mm, height 660mm (129.6 liters)

Packing dimensions and weight: 760 x 760 x 1250 mm, XX kg (TBD)

Safety features: Overheat protection, dry-boil protection, liquid detection

Warranty: 5 years

Remember:

- Power cable(s)

- Connectors for cooling jacket (kit or custom setup)

- Troll table with crane
- Steam condenser
